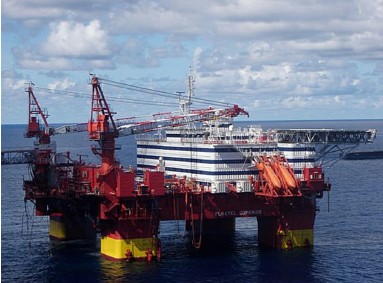

DP3 Accommodation Semi-submers
Principal dimensions
Length of main deck 70.5 m 231.3 ft
Breadth main deck 64.5 m 211.6 ft
Depth to main deck 35.0 m 114.8 fr
Length overall 94.0 m 308.4 ft
Operational displacement 29,030 t
Operational draft 18.0 m 59.1 ft
Survival displacement 25,470 mt
Survival draft 14.5 m 47.6 ft
Transit displacement 21,400 mt
Transit draft 8.4 m 27.6 ft
Capacities
Potable water 800 m3 5,000 bbls
Fuel oil 1,800 m3 11,300 bbls
Main deck storage 2,200 m2
Covered storage 400 m2
Variable load
Operational 2,700 mt
Survival 2,700 mt
Transit 1,700 mt
Rules and regulations
DNV + 1A1, Column Stabilized Accommodation Unit (N), HELDK, E0,
DYNPOS AUTRO, POSMOOR V ATA.
Gangway
Telescopic bridge 38.5 m +/- 8m
Helicopter deck
Helicopter diameter 27.4 m
Helicopter weight 14.6 mt
Machinery
Main generator 6 x 3680 kW
Emergency generator 1 x 1200 kW
Positioning systems
Azimuthing thrusters 6 x 3200 kW
Mooring winches 8
Mooring wires 8 x 2,000 m, 3"
Cranes
Deck cranes 2
Main hoist 50 mt at 30 m
Aux hoist 15 mt at 60 m
